Tap Specifications Catalog

·

Standard Specifications

Hard-Material Metric Tap

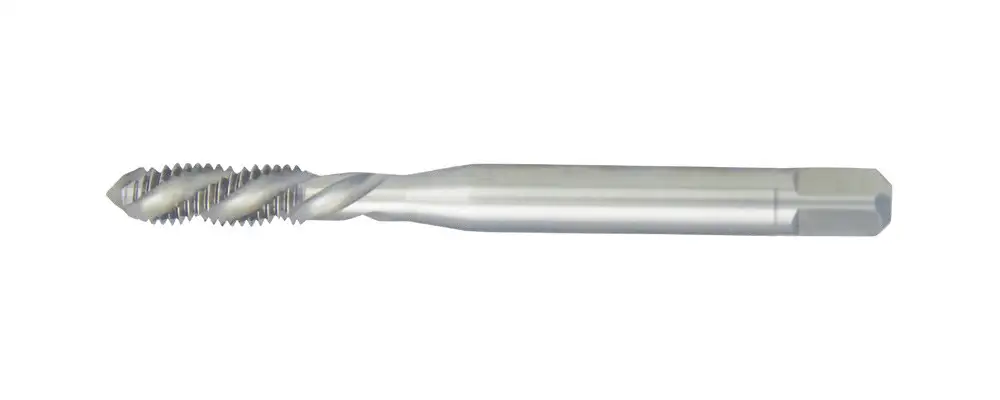

Spiral Flute Machine Tap with Thick Shank for AL parts

SPIRAL FLUTE TAPS

Features

The thread standard conforms to GB/T3506-2008 .

SPIRAL FLUTE TAPS

Specifications

(unit: mm)

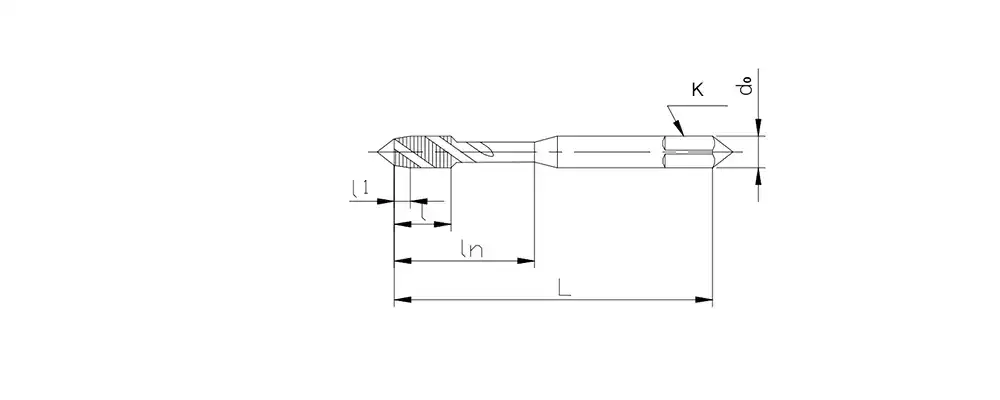

Thread Size	Pitch	L Overall length	l Thread Length	l1 Cutting Length	ln Length to neck	d₀ Shank diameter	K Square size	FLUTES
M3	0.5	48	6	2.5P	16.5	3.15	2.5	2
M4	0.7	53	8	2.5P	19.5	4.0	3.15	2
M5	0.8	58	9	2.5P	23.5	5.0	4.0	2
M6	1.0	66	11	2.5P	29	6.3	5.0	2

Hard-Material Metric Tap

Spiral Flute Machine Tap with Thin Shank for AL parts

SPIRAL FLUTE TAPS

Features

The thread standard conforms to GB/T3506-2008 .

SPIRAL FLUTE TAPS

Specifications

(unit: mm)

Thread Size	Pitch	L Overall length	l Thread Length	l1 Cutting Length	d₀ Shank diameter	K Square size	FLUTES
M8	1.0/1.25	72	13	2.5P	6.3	5.0	2
M10	1.0/1.25/1.5	80	16	2.5P	8.0	6.3	3
M12	1.25/1.5/1.75	89	18	2.5P	9.0	7.1	3

Hard-Material Metric Tap

Spiral Flute Machine Tap with Thick Shank(JIS B) for SUS

SPIRAL FLUTE TAPS

Features

The thread standard conforms to JIS B 4430.

SPIRAL FLUTE TAPS

Specifications

(unit: mm)

Thread Size	Pitch	L Overall length	l Thread Length	l1 Cutting Length	ln Length to neck	d₀ Shank diameter	K Square size	FLUTES
M4	0.7	52	8	2.5P	19.5	5.0	4.0	3
M5	0.8	60	9	2.5P	24.5	5.5	4.5	3
M6	1.0	62	11	2.5P	27.5	6.0	4.5	3
