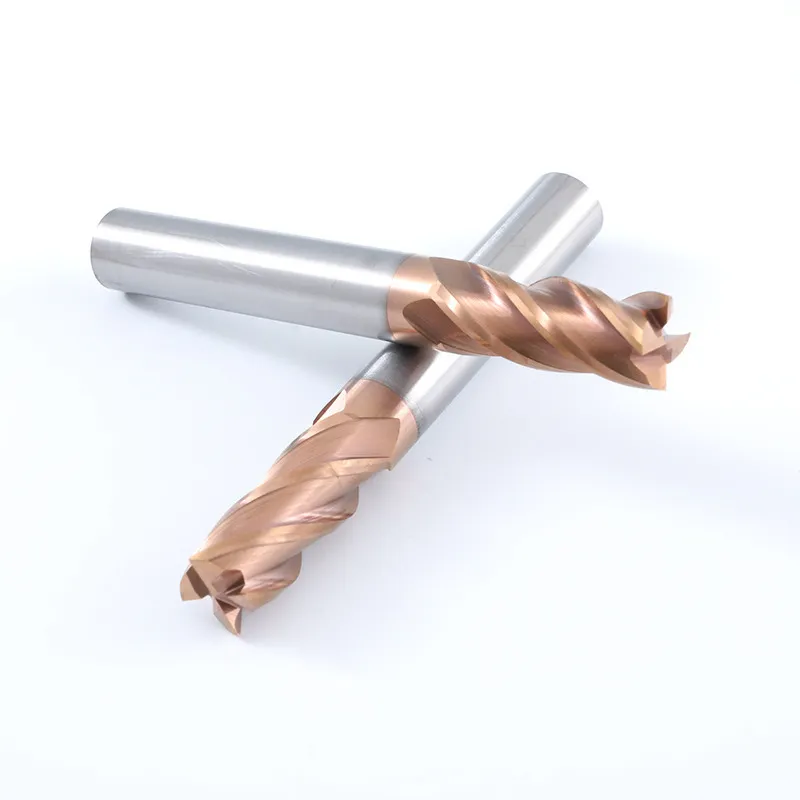

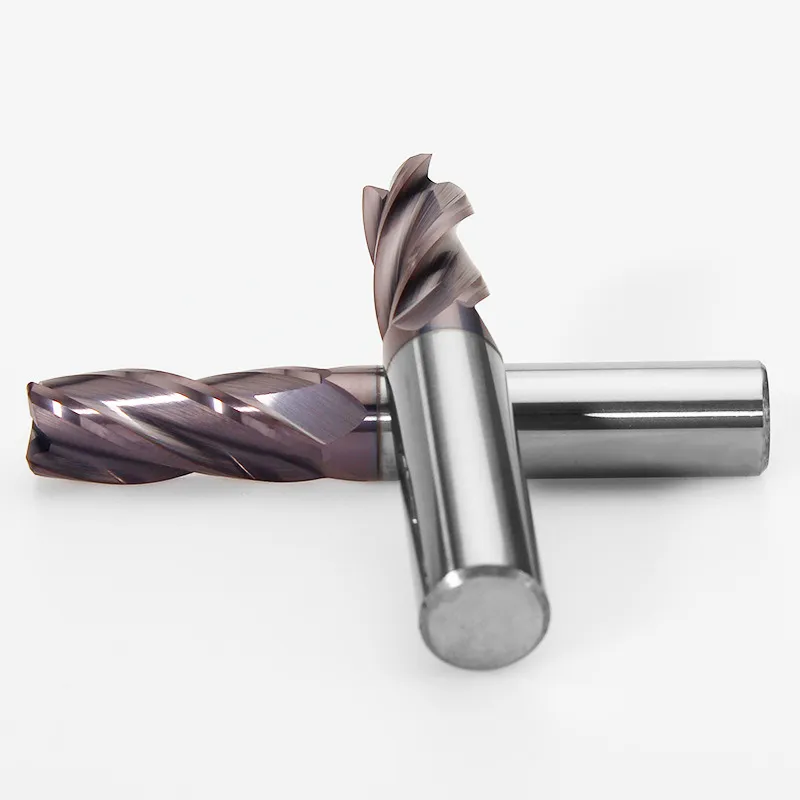

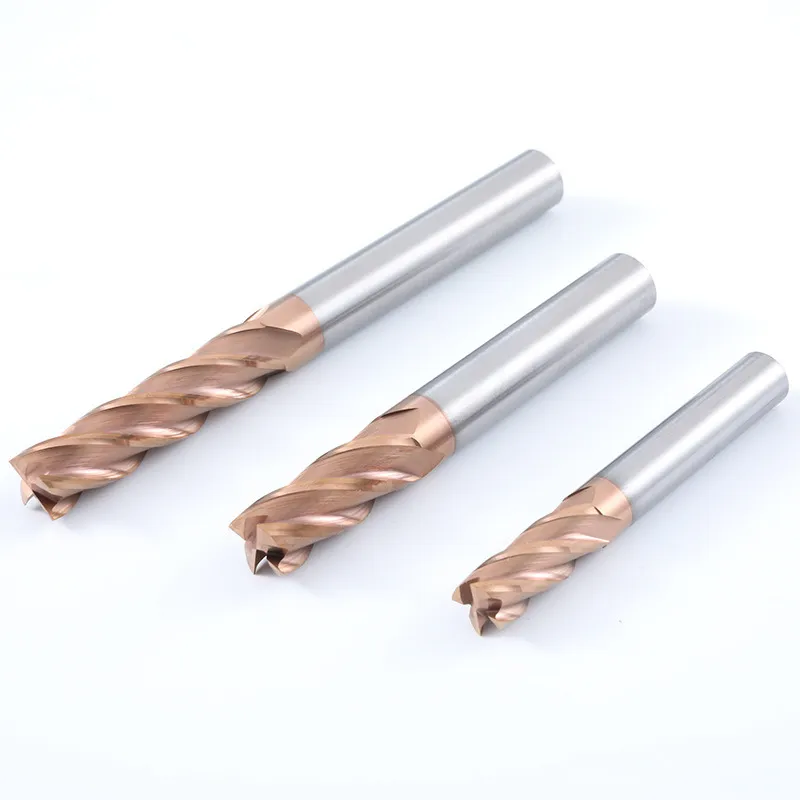

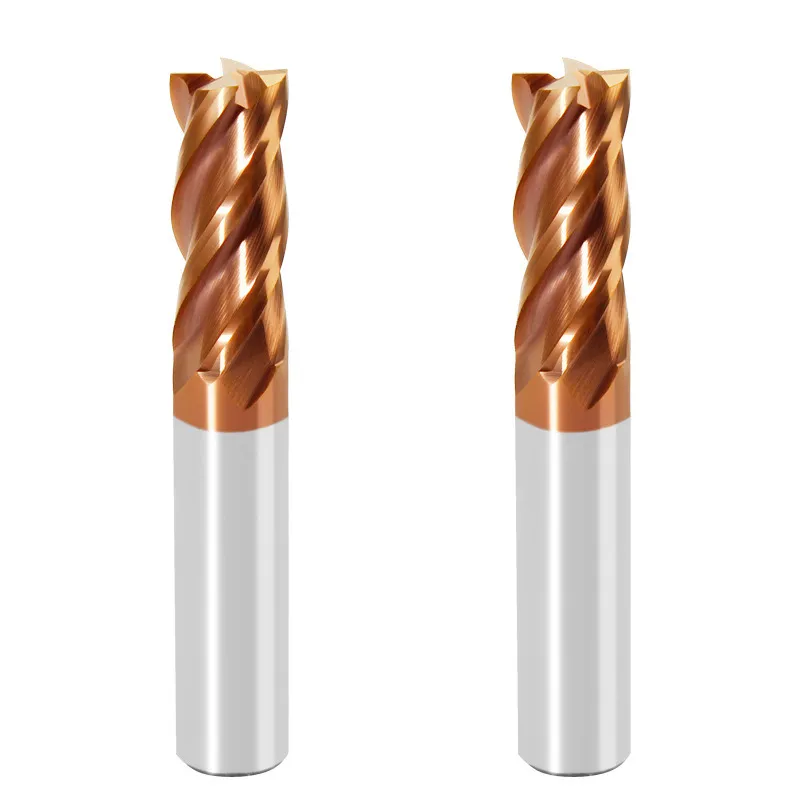

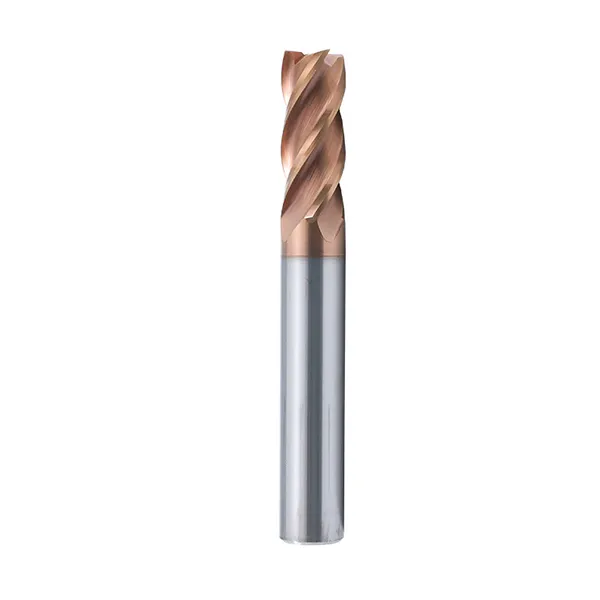

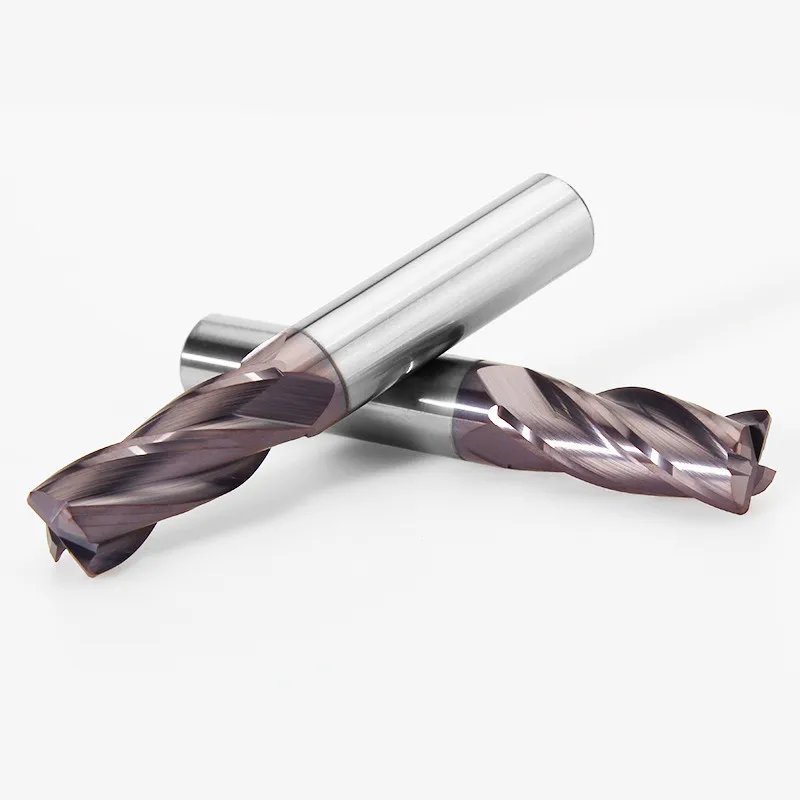

4-Flute Square End Mill D12 – TiN Coated, Standard Length, HRC55

Product Specifications:

Product Number:FMD120L75F4TN02
Material:Tungsten Carbide
Cutting Diameter (D):12 mm
Shank Diameter (d):12 mm
Overall Length (L):75 mm (standard length)
Flute Length (H):30 mm
Number of Flutes:4
Helix Angle:35°
Coating:TiN (gold)
Max. Workpiece Hardness:HRC 55
Package:PVC Box


Inquire

4-Flute Corner Radius End Mill D6 x R1.0 – TiAlN Coated, 50mm OAL 3-Flute Corner Radius End Mill D9 – TiCN Coated

Product Details

This 4‑flute solid carbide square end mill is a versatile choice for milling hardened steels up to HRC 55. The TiN (titanium nitride) coating reduces friction and increases wear resistance, extending tool life in alloy steels, mold steels, and stainless steel. The standard 75mm overall length and 30mm flute length provide good rigidity and sufficient reach for most die and mold applications.

The 12mm cutting diameter with a matching 12mm shank ensures stable clamping in collet chucks. The 35° helix design delivers smooth cutting action and efficient chip evacuation. This end mill performs reliably in slotting, contouring, and finishing operations on CNC machining centers.

Typical uses include mold bases, automotive components, general engineering parts, and pre‑hardened tool steel up to HRC55. Custom diameters and lengths are available via OEM orders. For higher hardness (>HRC55), consider AlTiN‑coated alternatives.

Customization

Size Customization

We offer custom milling cutter in any diameter, length, and shank configuration. Contact us with your size requirements.

📏 Standard sizes are listed on our size chart page. Need a non‑standard diameter, length, or shank? Custom sizes are also available – just tell us your requirements.
