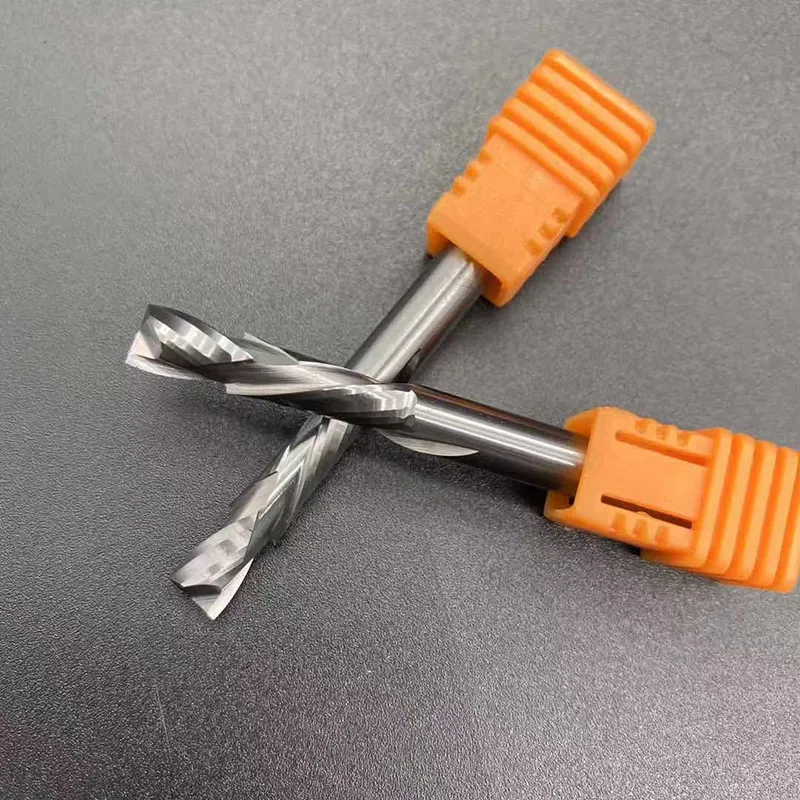

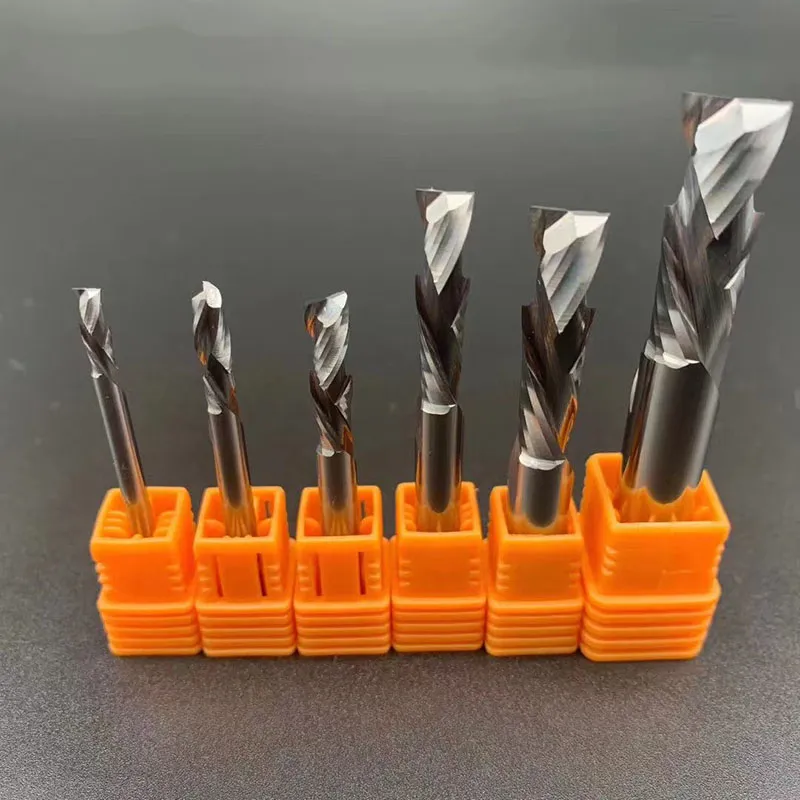

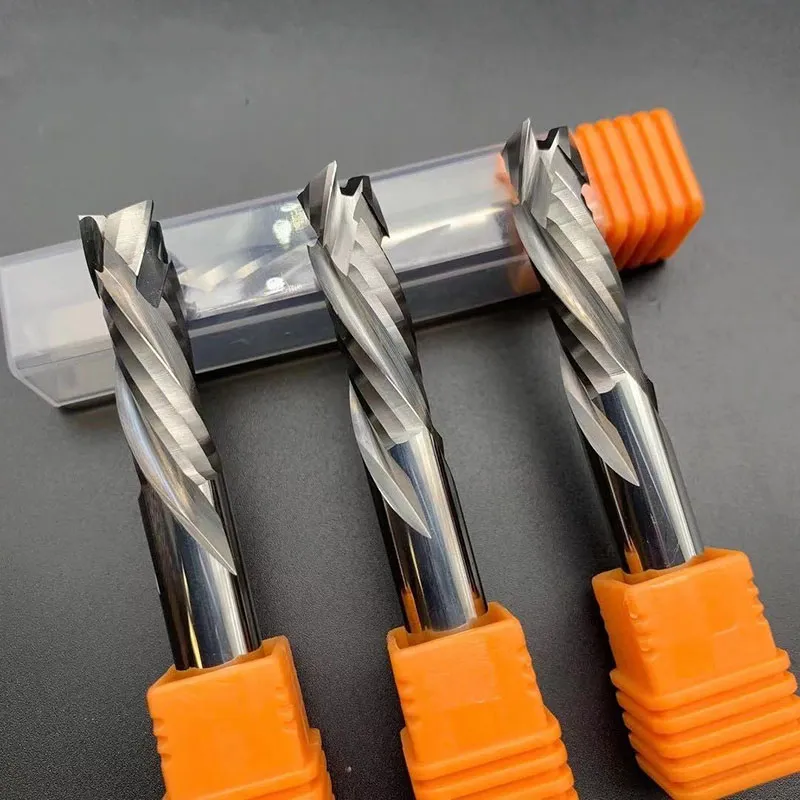

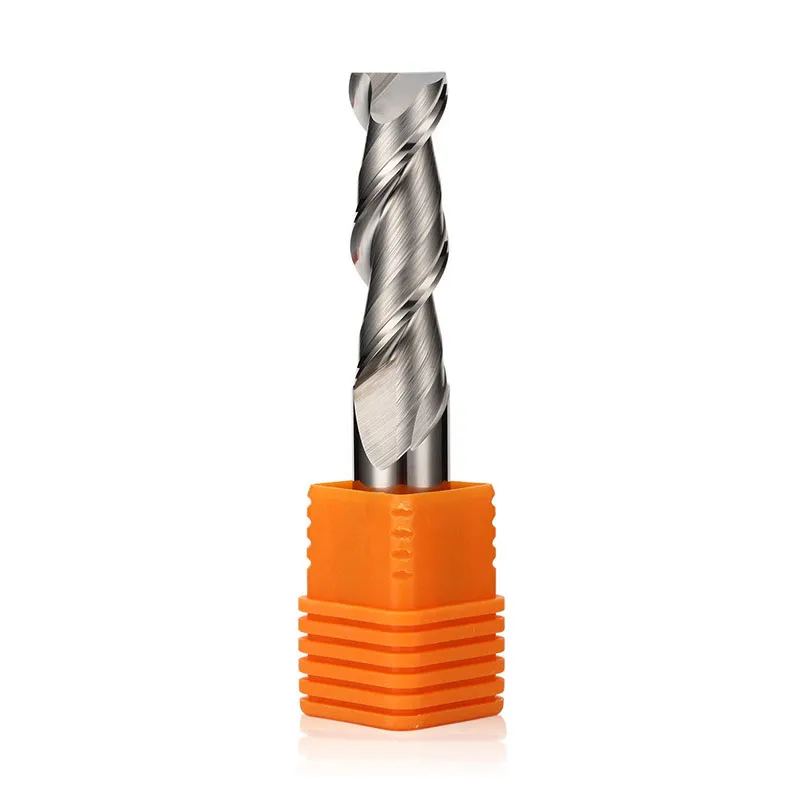

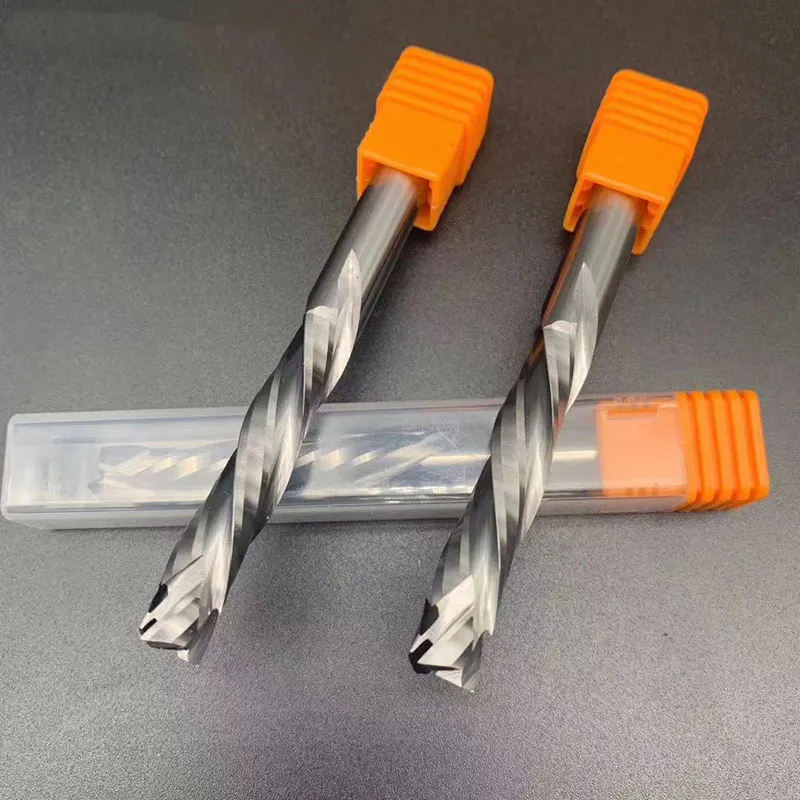

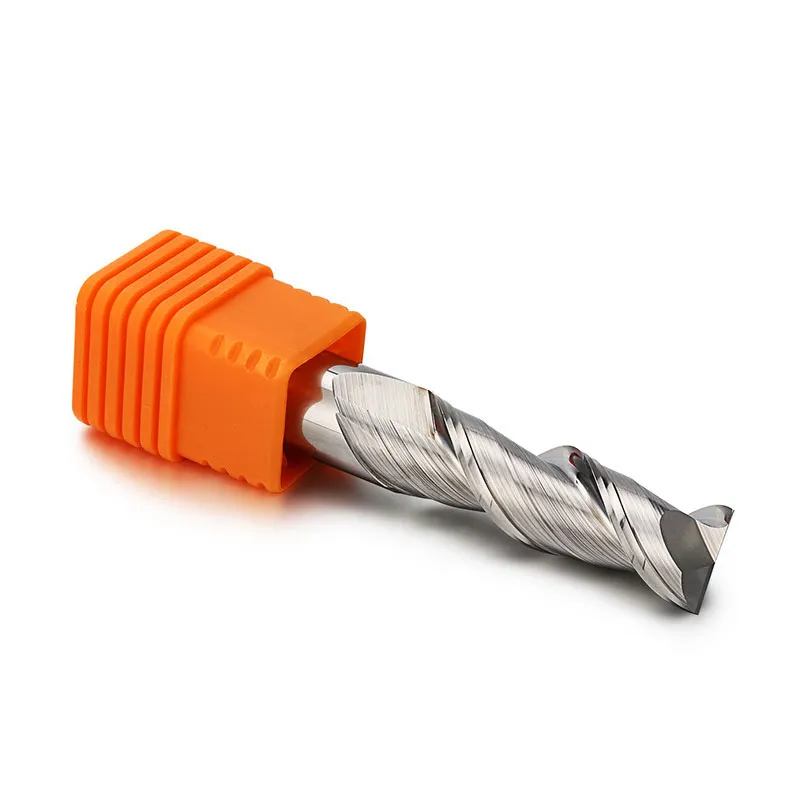

This 2-flute solid carbide end mill is specifically engineered for high‑speed machining and high‑gloss finishing of aluminum and its alloys. The 2‑flute design provides maximum chip clearance, preventing recutting and heat buildup – critical for soft, sticky aluminum. The high helix angle (45°) ensures efficient chip evacuation, minimizes built‑up edge (BUE), and produces mirror‑like surface finishes.

The 10mm cutting diameter features a straight shank of the same size for rigid clamping. Polished flutes offer an ultra‑smooth, low‑friction surface that prevents aluminum from adhering to the cutting edges. This end mill excels in slotting, contouring, ramping, and trochoidal milling on CNC machining centers, as well as manual milling operations.

Typical applications include aluminum electronic housings, automotive trim, aerospace components, and general high‑quality aluminum fabrication. Custom lengths, corner radii, and optional coatings (DLC, ZrN) are available for OEM orders. For demanding aluminum machining, this 2‑flute high‑helix end mill delivers excellent chip evacuation and superior surface quality.

Size Customization

📏 Standard sizes are listed on our size chart page. Need a non‑standard diameter, length, or shank? Custom sizes are also available – just tell us your requirements.
