Product Specifications:

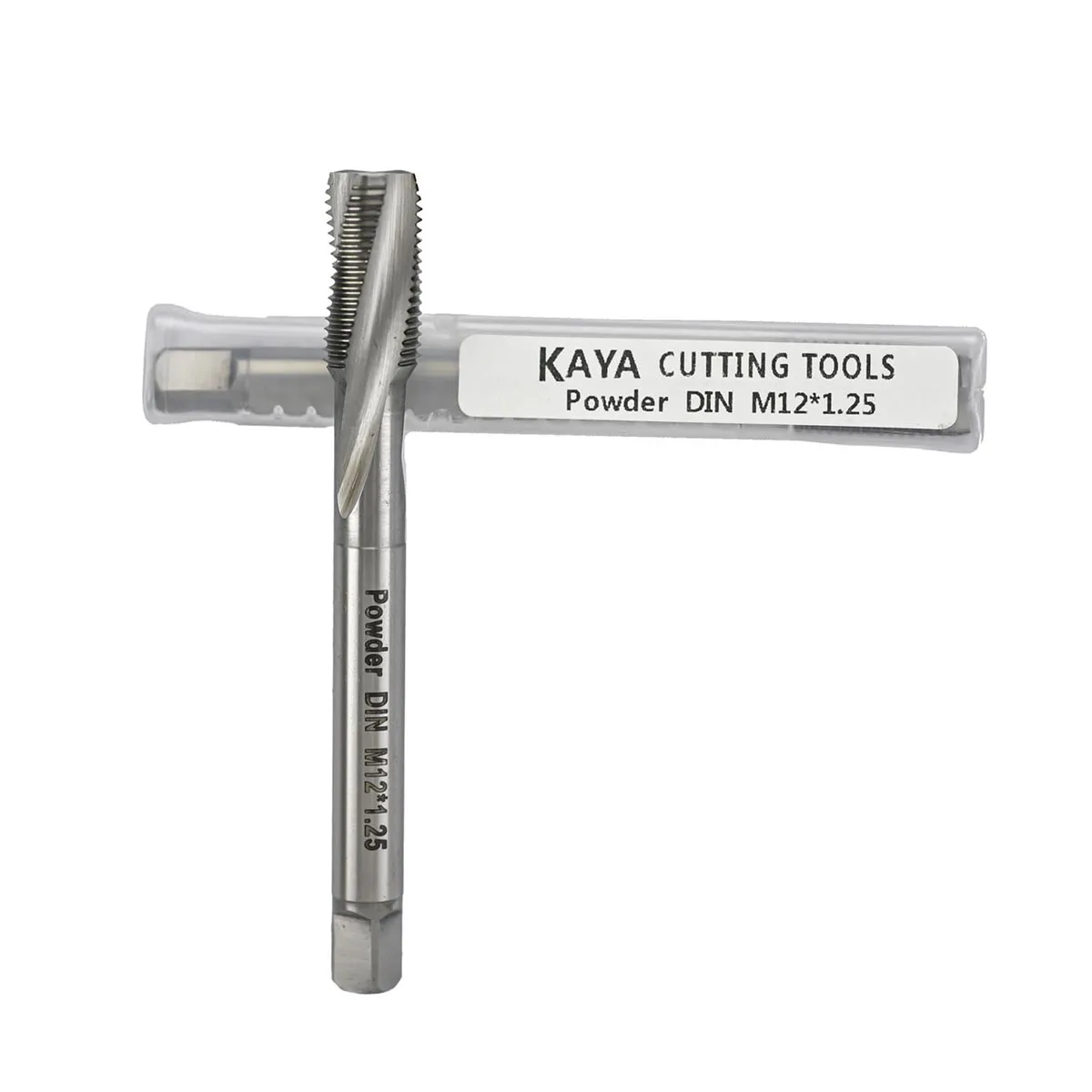

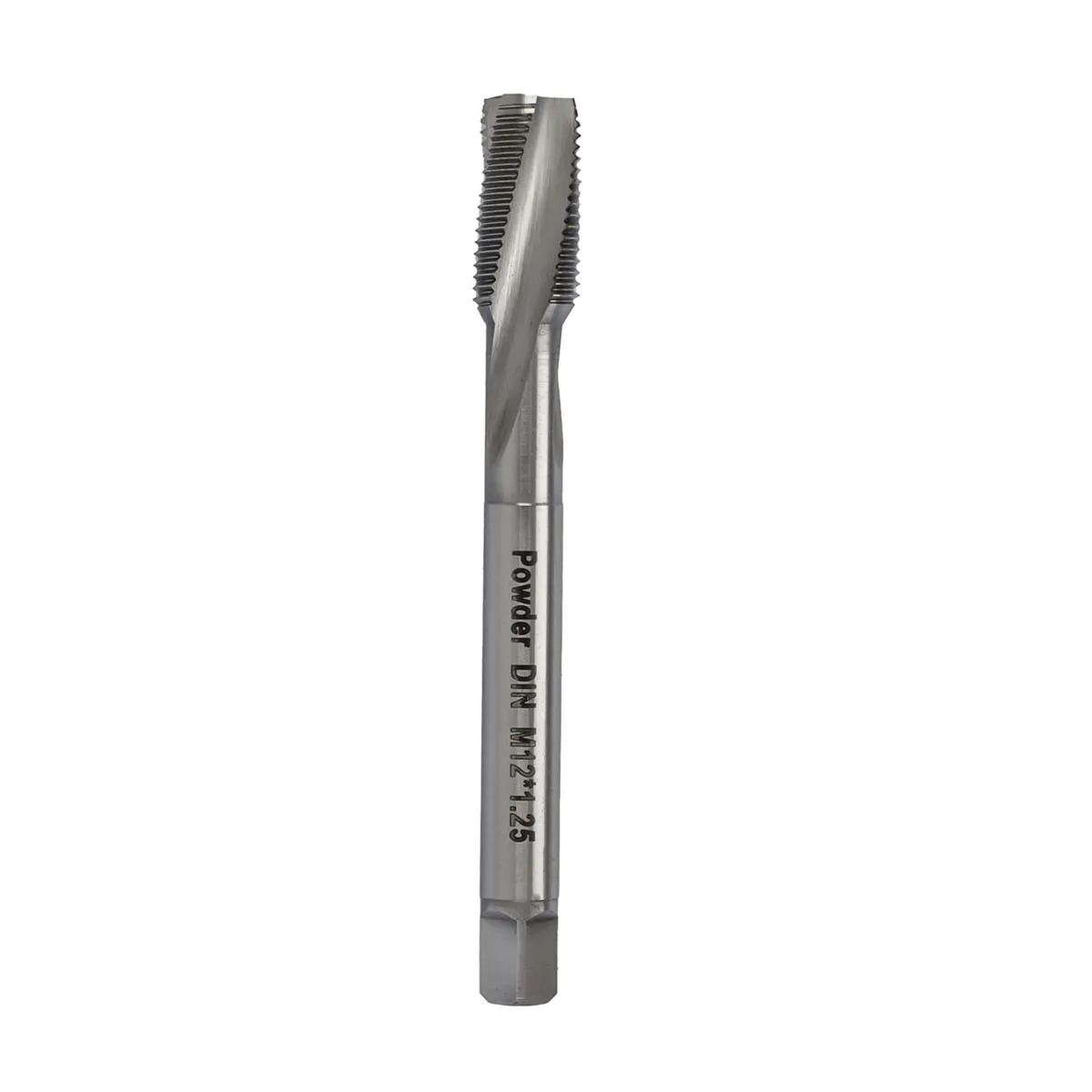

This HSSE-PM (powder metallurgy) spiral flute tap is designed for high-performance threading in medium to heavy-duty applications. The powder metallurgy process delivers a homogeneous, ultra-fine grain structure, providing superior wear resistance and edge retention compared to conventional HSS or HSSE. The 15° spiral angle ensures efficient chip evacuation in blind holes, while the 3‑flute design reduces cutting forces and improves thread quality.
The M12x1.25 size features a total length of 100mm and working length of 22mm, making it ideal for blind holes in automotive components, hydraulic blocks, and heavy machinery parts. The TiN coating (gold) reduces friction, increases surface hardness, and improves tool life in abrasive materials such as carbon steel, alloy steel, stainless steel (e.g., 304, 316), and ductile cast iron.
Compared to standard HSSE taps, HSSE‑PM offers up to 35% longer tool life in high-speed machining, particularly in interrupted cuts and difficult-to-machine alloys. Custom options include left‑hand flutes, extra‑long shanks, alternative coatings (TiAlN, AlCrN), and special thread tolerances (6HX, 6G). OEM orders are welcome with competitive lead times.

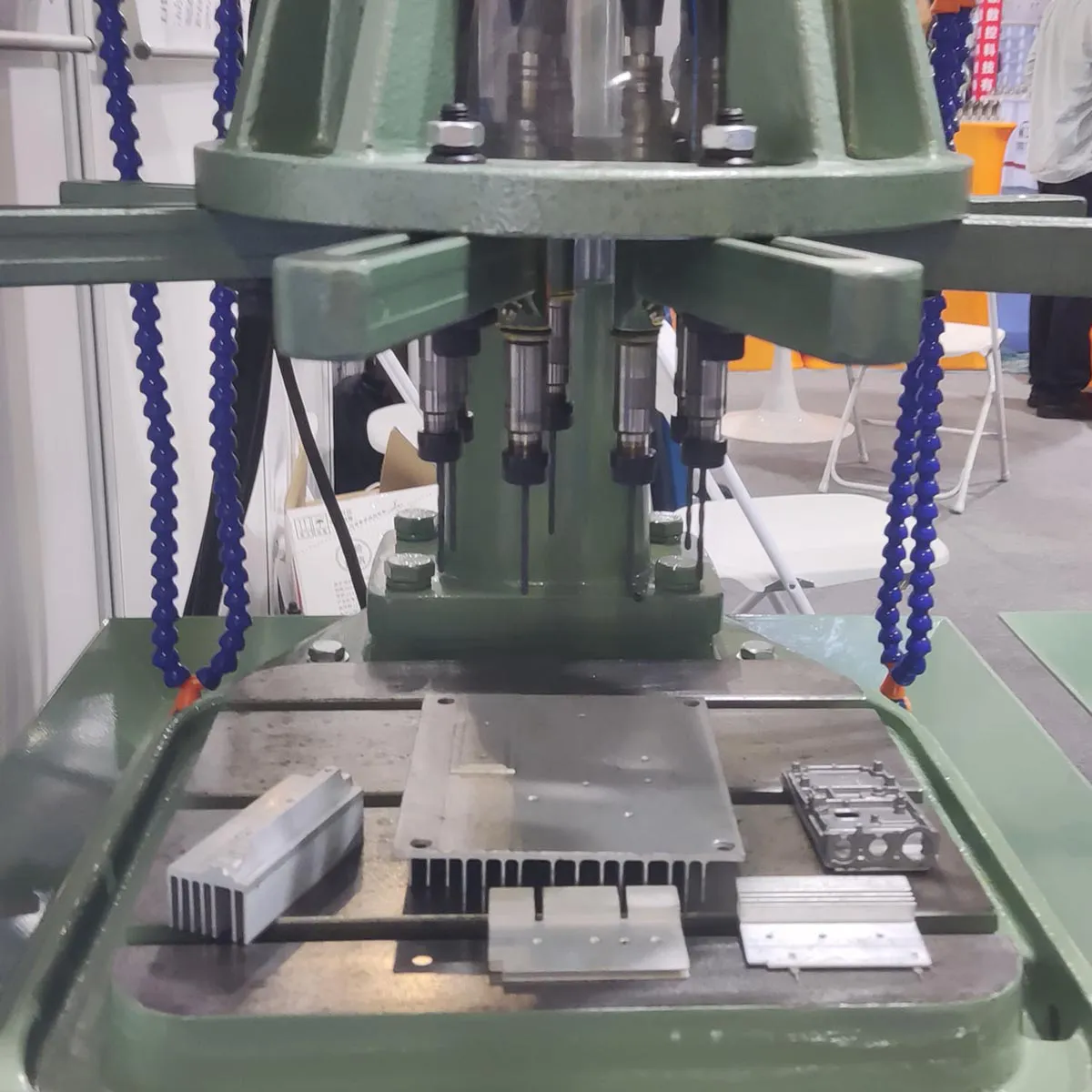

HSSE (cobalt-alloyed) and HSSE-PM (powder metallurgy) taps deliver enhanced threading precision, superior wear resistance, and high heat resistance – ideal for high-speed cutting in hard-to-machine materials. They are widely used in PCB supports, heatsinks, electronic enclosures, motor components, battery mounting holes, optical parts, and microthreads in miniature devices.
You can refer to the article Applications of HSSE/ HSSE-PM Taps in the Electronics Industry to learn more.
Spiral flute taps are ideal for blind holes (chip evacuation upward), while spiral point taps are best for through holes.Read full guide →
Available coatings: TiN (gold, general purpose), TiAlN (violet, high heat), CrN (silver, low friction), AlCrN (dark gray, hard materials). View full coating guide →
Metric: M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30. Also available in UNC, UNF, and NPTF threads. Custom lengths and shank configurations. View more size chart →
