Product Specifications:

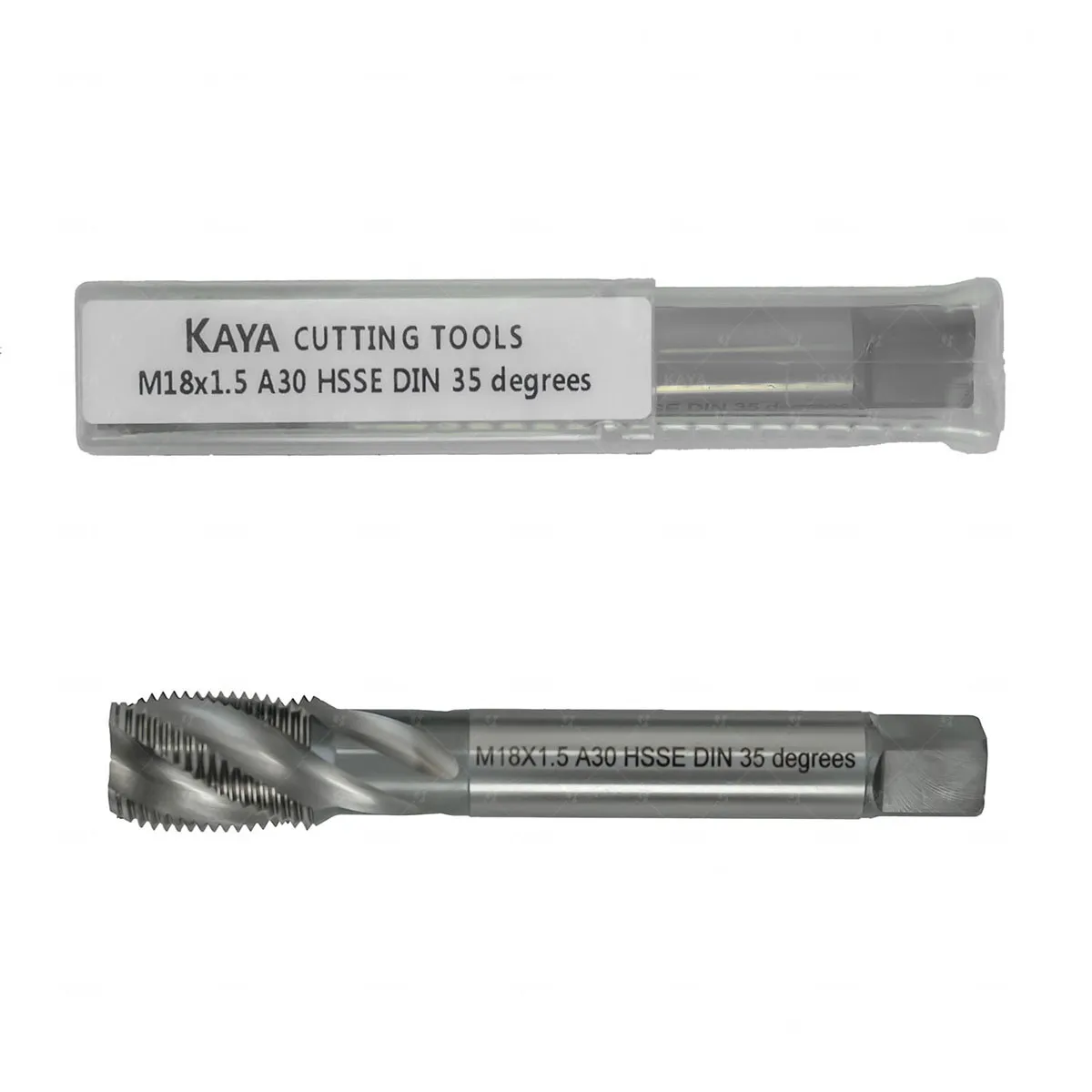

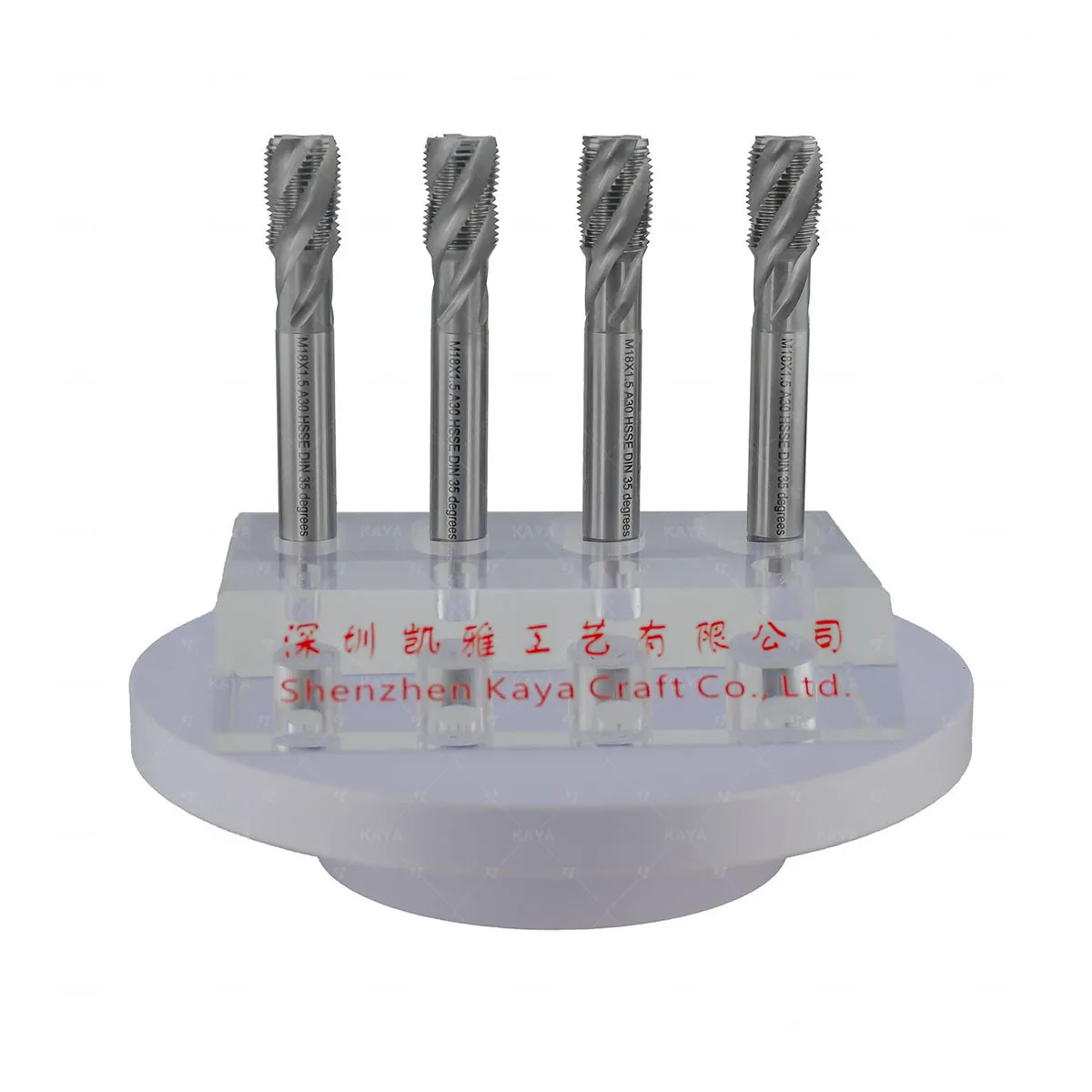

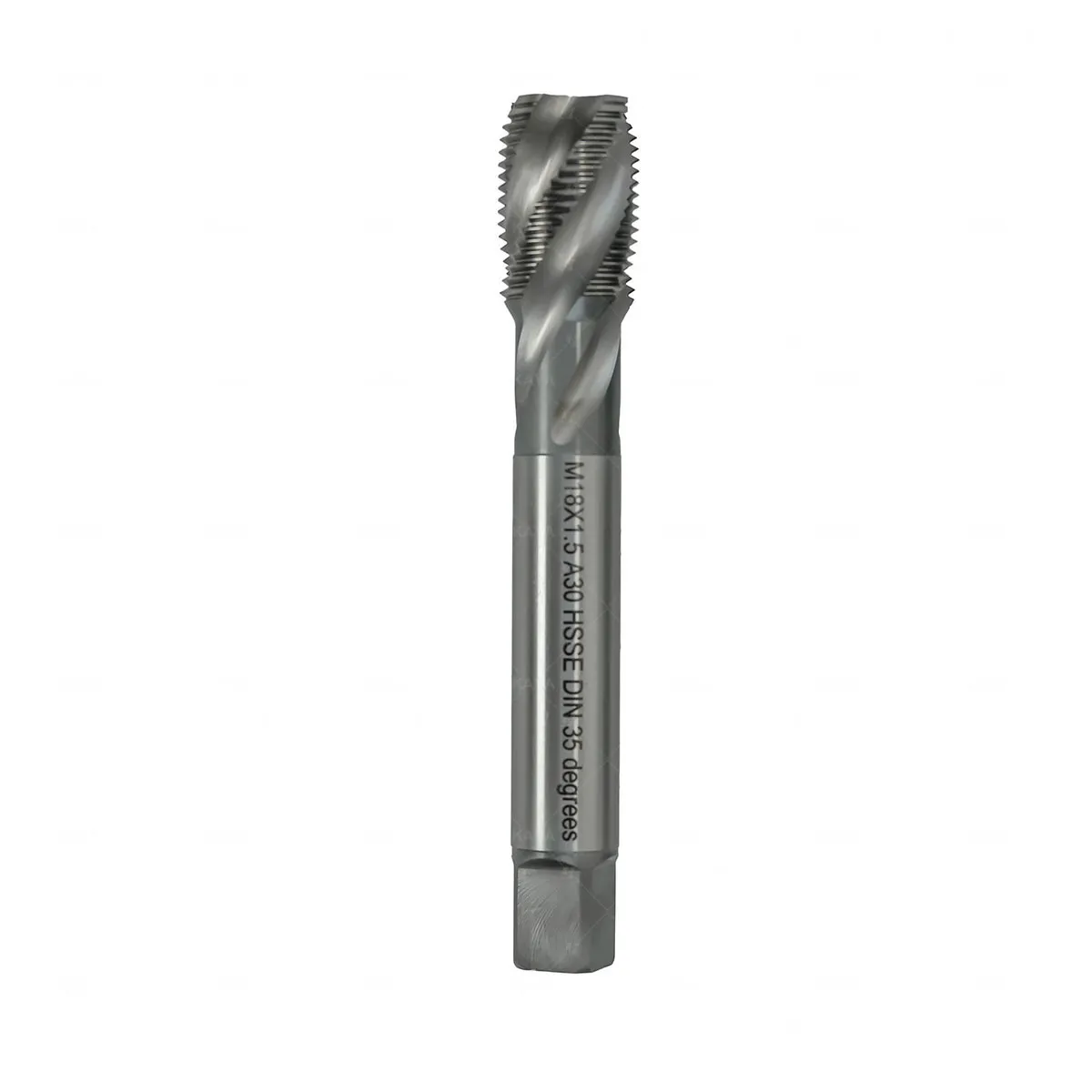

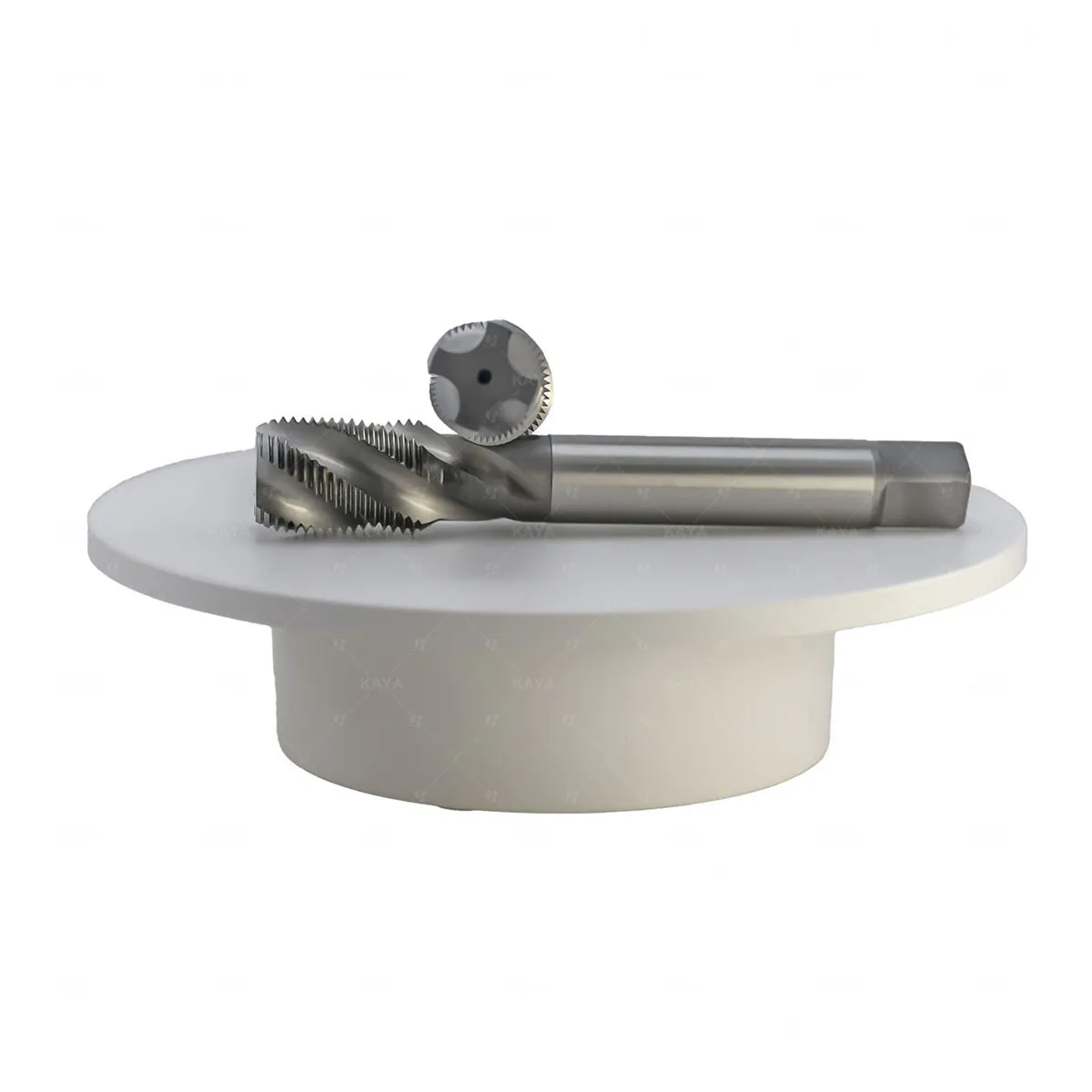

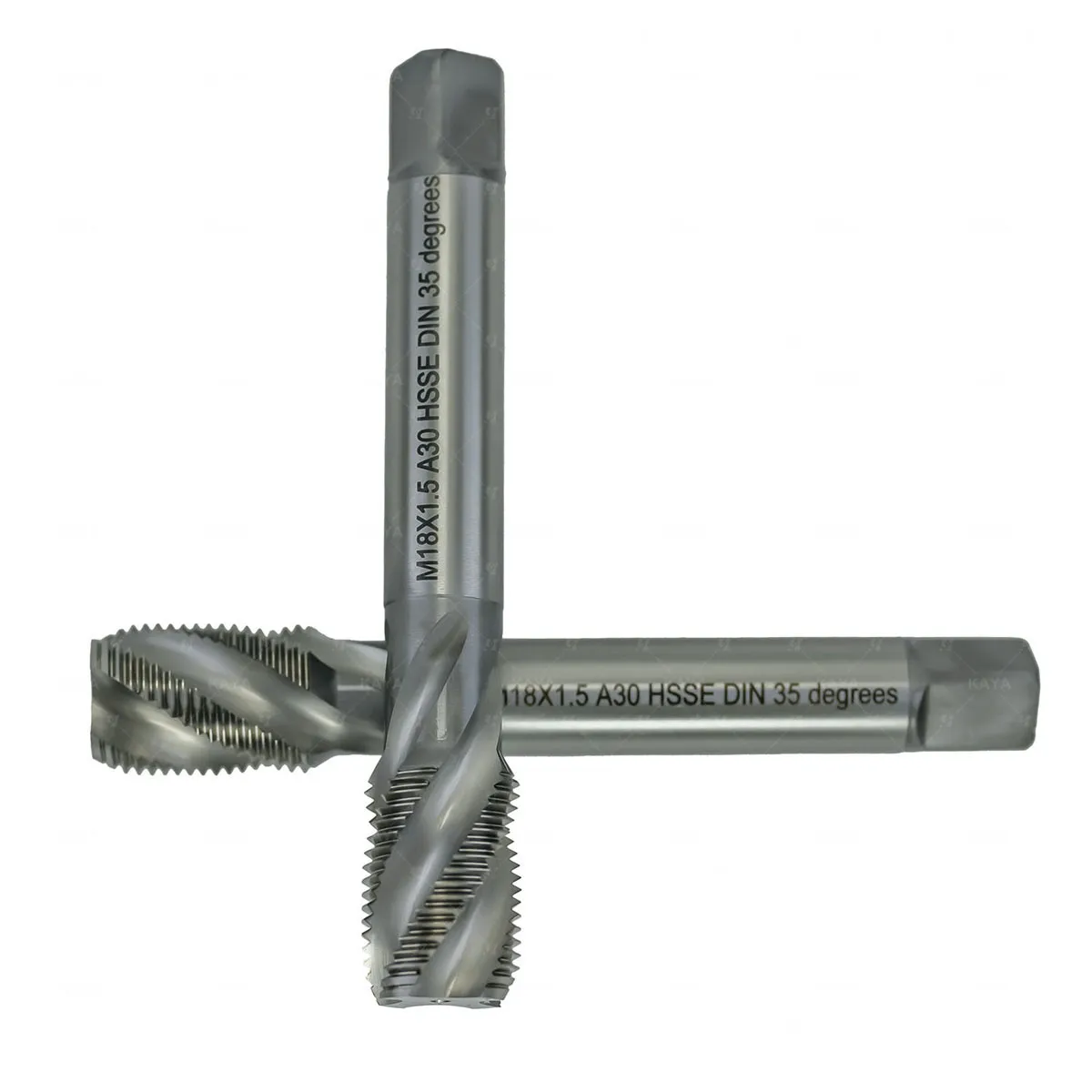

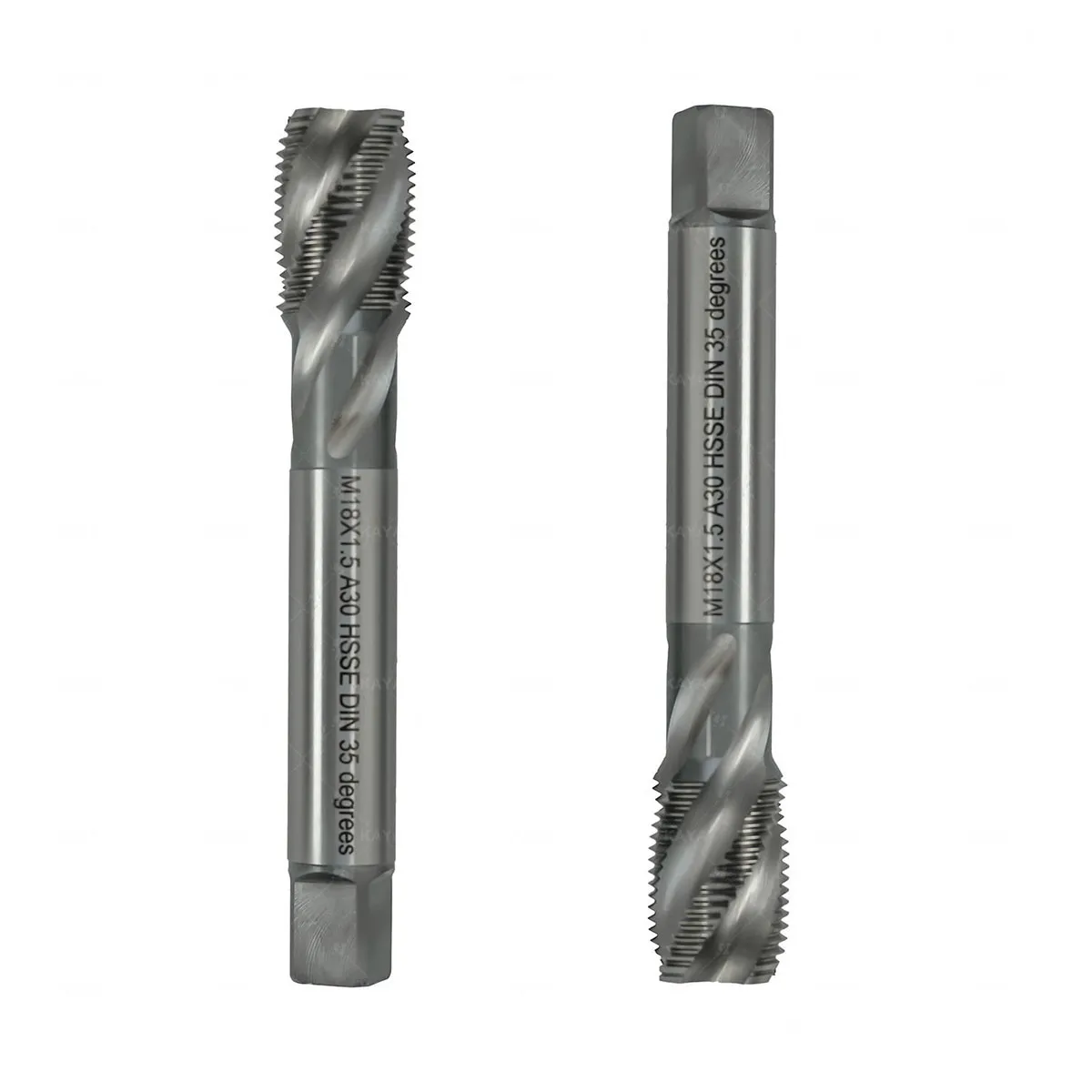

This HSSE spiral flute tap features a 35° spiral angle, providing excellent chip evacuation for medium-deep blind holes. The 35° angle actively lifts chips upward, preventing packing in blind holes up to 2.5× diameter depth. The 4‑flute design reduces cutting load per flute and improves chip splitting, making it suitable for larger diameter threads like M18.
The M18x1.5 tap has an overall length of 110mm and a working length of 25mm, optimized for medium-depth blind holes in carbon steel, alloy steel (4140, 4340), stainless steel (304, 316), cast iron, and aluminum alloys. Uncoated HSSE offers good wear resistance and toughness for general-purpose machining. For higher speeds or abrasive materials, TiCN or TiAlN coatings can be applied upon request.
Typical applications include heavy machinery components, hydraulic cylinders, industrial gearboxes, and large threaded holes in structural parts. Custom options include alternative coatings, left‑hand flutes, and special thread tolerances. For reliable deep blind hole threading, this 35° spiral tap delivers consistent performance.
HSSE taps for mechanical manufacturing offer enhanced tool life, high heat resistance, and precision threading. Ideal for transmission parts, bearing housings, pumps, valves, and fasteners.
You can refer to the article Advantages of HSSE Taps in Mechanical Manufacturing to learn more.
Spiral flute taps are ideal for blind holes (chip evacuation upward), while spiral point taps are best for through holes.Read full guide →
Available coatings: TiN (gold, general purpose), TiAlN (violet, high heat), CrN (silver, low friction), AlCrN (dark gray, hard materials). View full coating guide →
Metric: M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30. Also available in UNC, UNF, and NPTF threads. Custom lengths and shank configurations. View more size chart →
