Tap Without Trouble: A Practical Guide to Adjusting Tap Drill Diameters for Different Materials

In precision machining, the quality of tapping directly affects the service life and assembly accuracy of components. Among the many influencing factors, adjusting the tap drill diameter is often the key to success. Material-specific characteristics—like the elastic recovery of aluminum alloys or the thermal expansion and adhesion of stainless steel—render standard parameters unreliable. This guide, grounded in material science and cross-industry data, systematically breaks down the adjustment logic for 16 common materials. It aligns global standards (including ANSI, DIN, and ISO), introduces compensation strategies for part thickness, and offers machine compatibility tips to help operators achieve the optimal balance between performance and cost.

Why Adjust the Tap Drill Diameter? 3 Key Fundamentals

1. Material Hardness Matters

• Soft materials (e.g., aluminum): Tend to "spring back" during tapping. Use slightly larger drill diameters.
• Example: For M6 threads, use Ø5.1 mm instead of Ø5.0 mm.
• Hard materials (e.g., stainless steel): Resist deformation. Use standard or slightly smaller holes.
• Example: M6 thread with Ø5.0 mm drill.

2. Tap Type Affects Drill Size

• HSS taps (silver): Versatile. Adjust ±0.05 mm depending on material.
• Carbide taps (gold): For high-hardness materials. Use holes 0.02–0.03 mm larger than with HSS.

3. Common Pitfalls to Avoid

• ❌ One tap does not fit all materials.
• ❌ Always clean cast iron holes with compressed air before tapping.

Global Standard Comparison (ISO / ANSI / DIN)

Thread Spec	ISO Drill Ø	ASME Drill Ø	DIN Drill Ø	Typical Use
M6×1	Ø5.0 mm	Ø5.05 mm	Ø4.95 mm	Automotive engine components
1/4"-20	Ø5.1 mm	Ø5.15 mm	-	Hydraulic piping
M8×1.25	Ø6.8 mm	Ø6.75 mm	Ø6.7 mm	Machine tool guides

• Industry Insight: German clients often request drill diameters 0.02 mm smaller to improve thread strength.

Drill Diameter Adjustments by Material

Material Type	Example Part	Enlargement Over Standard	Recommended Tap Type

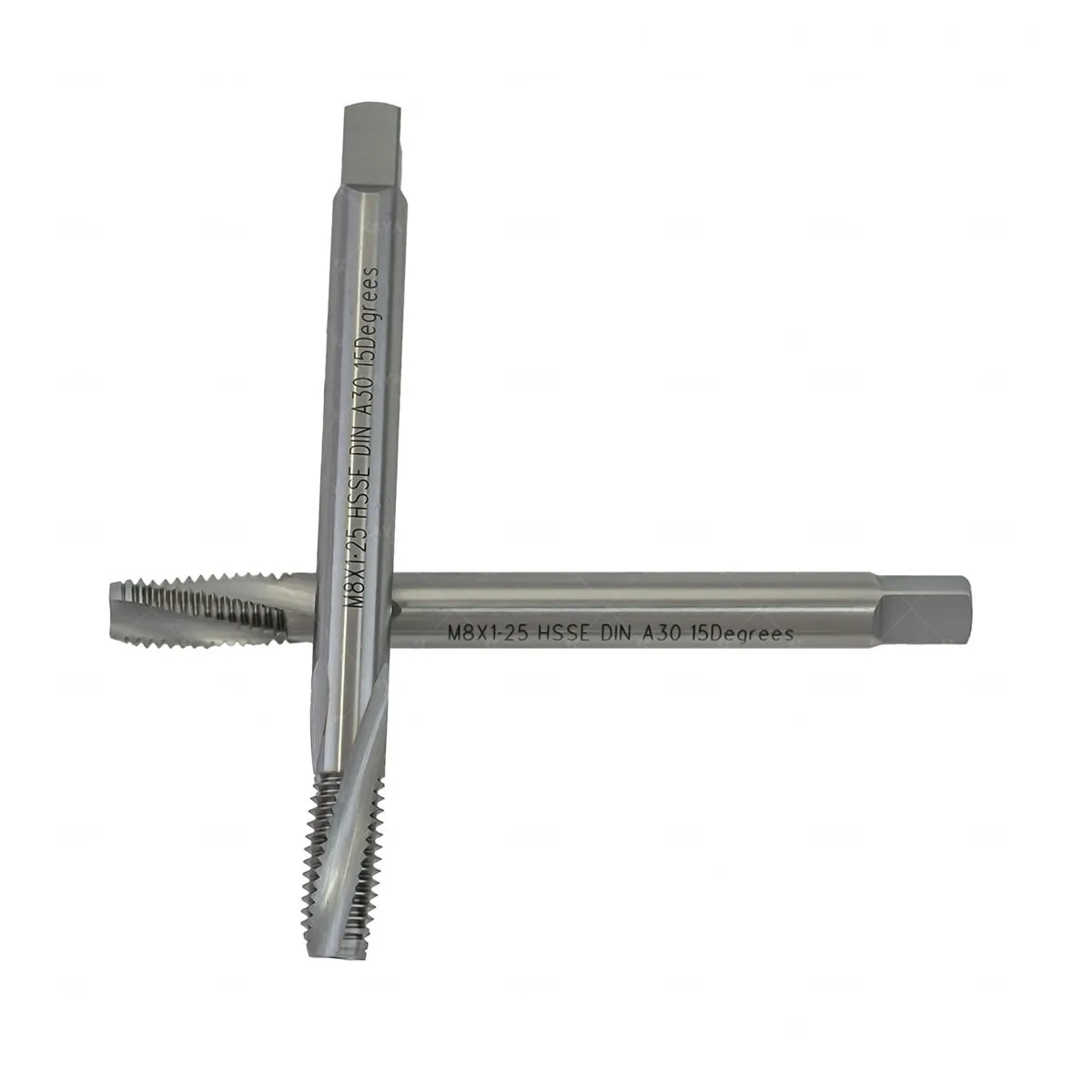

Aluminum Alloy	Enclosures / Heat sinks	+0.05 mm	Spiral-flute HSS tap
304 Stainless Steel	Flanges / Valves	+0.03 mm	Cobalt HSS-E tap
Medium Carbon Steel	Gears / Shafts	No adjustment	Carbide tap
Brass	Plumbing parts	+0.07 mm	Straight-flute HSS tap

Thickness Compensation Reference Table

Workpiece Thickness	Adjustment Strategy	Recommended Tap Type
< 3 mm	Drill +0.05 mm	HSS-E for thin plate
3–8 mm	Standard values	Universal carbide series
> 8 mm	Drill –0.03 mm	Deep-hole spiral tap

• Real-World Lesson: A customer failed to adjust for 12 mm thick aluminum, resulting in thread root fracture.

Machine Compatibility Guidelines

1. Benchtop Drill Press Tapping

• Compensate vibrations by increasing hole size 0.03–0.05 mm.
• Use self-centering tap holders (Recommended: TC-2 series).

2. CNC Machining Centers

• High-speed tapping formula: Speed = 25 × Tap Diameter (mm)
• Our smart compensating holders reduce the need for drill size adjustments.

Three-Step Rapid Check Method (For On-Site Emergencies)

• Step 1: Observe Sparks During Grinding
  • Many sparks = Hard material → Minimize enlargement
  • Few bright sparks = Soft material → Increase enlargement
• Step 2: Trial Cut
  • Start with standard hole size.
  • If the tap sticks or stalls, enlarge by 0.02 mm and try again.
• Step 3: Examine Chips
  • Long ribbon-like chips = Hole too small
  • Fine chip dust = Hole size is appropriate

Cost-Saving Tips (Proven in Practice)

1. For Aluminum

• Use AL-5 series taps (gold-coated).
• Drill can be 0.02 mm smaller than usual.
• Each tap can handle 200 more holes.

2. Stainless Steel Quick Fix

• If galling occurs, apply a small amount of canola oil in the hole. (80% cheaper than specialty lubricants)
• Caution: For manual tapping only!

Real-World Case Studies

Case 1: Bicycle Parts Factory in Vietnam

• Problem: Frequent tap breakage in 6061 aluminum.
• Solution: Switched drill from Ø4.8 mm to Ø4.85 mm. Used HSS-E-3A taps.
• Result: Tap life increased from 300 to 1500 holes.

Case 2: Hydraulic Valve Manufacturer in Shandong

• Problem: 304 stainless steel thread out-of-tolerance.
• Solution: Adjusted drill from Ø6.0 mm to Ø5.98 mm. Switched to TP-7C carbide taps.
• Result: Thread gauge pass rate increased from 65% to 92%.

Conclusion

Tapping is a delicate balancing act between material behavior, tool capability, and process conditions. From pre-enlarged holes for aluminum to step-cooling for stainless steel, each material demands tailored pre-tap strategies. Variables such as part thickness and machine type must also be factored into the correction model. With comparative global standards, thickness compensation tables, and chip morphology diagnostics, this guide builds a complete workflow—from drilling prep to final inspection. Whether dealing with thin-walled EV motor parts or precision threads in orthopedic implants, mastering the underlying principles and applying parameter adjustments flexibly ensures stable, high-efficiency threading.
